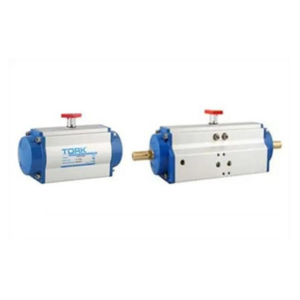

Tork RA-DA Double Acting Pneumatic Actuator
Product Specifications:
| Brand | Tork |
| Size | RA 32 DA-RA 350 DA |
| Caps and Pistons | Die cast Aluminium |
| Temperature | -20 degC-80 deg C |
| Body | Extruded Aluminium / Cast Aluminium |
| Output Tork Value | 9 Nm – 5162 Nm |
| Application | Ball Valve,Butterfly Valve,Plug Valve,Dampers on-off / Proportional Control |
| Supply Pressure Air | 4 – 8 bar |
Product Description :
General Features:
- High performance
- Long lasting
- High torque (rotation movement) output
- Position indicator
- Body: Extruded aluminium, (on request; anodized)
- Optionally; epoxy painted body or PTFE coated body
- Piston and caps: Die cast aluminium
- Double acting actuators can turn into
- single acting easily
- Single acting actuator’s springs, preloaded and durable
- Sensitive and high quality working of bearing system and o-ring
- Stroke adjustment in both ways +/-5 deg
- Nickel covered steel or stainless steel shaft
- IS0 5211, DIN 3337 and namur standard
- Limit switchbox, positioner connection is namur standard
- Direction valve montage is namur standard
- Actuator valve montage is ISO 5211 standard
Other Features:
- Valve Connection: ISO 5211 /
- DIN3337 standard
- Limit Switch Connection: Namur standard, VDI / VDE3845
- Positioner Connection: Namur standard, VDI / VDE3845
- Solenoid Valve Connection: Namur standard, VDI / VDE3845
- Stroke Adjustment: Both directions open and close positions ( ±5%)
- Change to Single Acting: Add springs
PN 63 Tork-PAV 903 Pneumatic Actuated Valves
Product Specifications:
| Pressure | PN 63 |
| Size | 1/2″ – 3″ |
| Valve Body Material | AISI 316 SS- Code (TORK- KV 903),optional AISI 304 SS |
| Connection | Threaded |
| Temperature | -40-180 deg C |
| Supply Air | 4-6 bar,Stroke adjustment |
| Type No | PAV 903-DA / PAV 903 SR,Limit switch box,positioner,namur solenoid valve,manuel override |
| Way | 2/2 |
| Working Pressure | PN 63 bar (1/2″..11/4″),50 bar (11/2″-4″) |
| Connection Standard | B2.1 BS21 1973 DIN 259/2999 NPT |
| Actuator | RA-DA Double Acting Actuators / RA-SR Single Acting Actuators |
Applications:
- Chemical Industry
- For acids and chemical controls
- For purpose of drain and stopper at the end of the line
- Treatment plants
- Stainless Steel Resistant Fluid Types
Tork-EAV 901 Electric Actuated Brass Ball Valves
Product Specifications:
| Model | KV 901 |
| Brand | Tork |
| Material | Brass |
| Actuator Selection | REA 40 (DN15-DN40),REA 60 (DN50 ve DN 80) |
| Operation | 2/2 Way |
| Working Pressure | PN40 (DN15-DN32),PN25 (DN40-50 ),PN16 DN80) |
| Working Temperature | -20 deg C-130 deg C |
| Connection sizes | DN15-DN80 |
| Protection | IP67 |
| Control Type | On-off (option proportional ) |
| Power Supply | 220 V AC,(on request 110 V AC,24 V DC) |
| On Off Time | 13 / 14 sn (50/60 Hz) |
| Output Torque | 40 Nm,60 Nm |
| Optional | LCU Local Control Unit,PIU potentiometer,CPT Current Position Transmitter |
Product Description:
TORK-EAV 901 Series On-Off Electric Actuated Brass Ball Valve 2/2 way
| Sizes | Code no | Way | Pressure | Temperature |
ISO Connections
|
| 1/2″ | T-EAV901.15 | 2/2 | 0-40 bar | 0..130 C | F03 |
| 3/4″ | T-EAV901.20 | 2/2 | 0-40 bar | 0..130 C | F03 |
| 1″ | T-EAV901.25 | 2/2 | 0-40 bar | 0..130 C | F03 /F04 |
| 11/4″ | T-PEV901.32 | 2/2 | 0-40 bar | 0..130 C | F04 /F05 |
| 11/2″ | T-EAV901.40 | 2/2 | 0-16 bar | 0..130 C | F04 /F05 |
| 2″ | T-EAV901.50 | 2/2 | 0-16 bar | 0..130 C | F05 |
Tork Pneumatic Actuators
Product Specifications:
| Brand | Tork |
| Usage/Application | On-off and proportional control of Ball, Butterfly Valves, dampers |
| Type | Double- Single Acting / 3 position / 180 Deg |
| Ambient Temperature | -20 to 80 Deg C |
| Connection | ISO 5211 Standard |
| Series | RA 32 – RA 400 ( 2 – 3650 NM) |
| Supply Air Pressure | 2,5 – 8 bar |

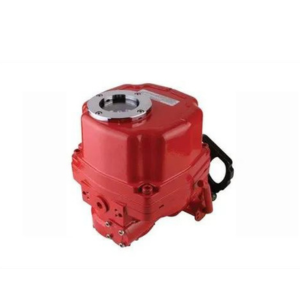

T-REA 40 On/Off Rotary Electric Actuators, 220 V Ac,Single Phase
Product Specifications:
| Power Supply Voltage | 220 V AC,Single Phase |
| Ambient Temperature | -20 to 70 Deg C |
| Cable Connection | Three PF 3/4″ tap (standart type only) |
| Flange Connection | ISO5211 standard (F03/F05/F07) |
| Open and Close Time | 12 – 14 seconds |
| Limit Switches | 2 x open / close,SPDT,250 V AC,10A rating (on request additional +2 switches) |
| Motor | Induction motor ( reversible) |
| Torques Output | 40 NM |
| Enclosure | Weatherproof enclosure IP67,NEMA 4 and 6 |
| Travel Angle | 0-110 Degree |
| Manuel Override | Declutching mechanism (8 cycles open and close) |
| Material | Steel,Aluminium Alloy,Al-bronze,Polycarbonate |
Product Description:
Specially designed for quarter turn operating applications such as Ball, Butterfly, Plug valves, Dampers and similar usages.Its variation in wide range of output of torque control options fit your specific requirement. High grade aluminium alloy for housing provides compact and low weight.
- High corrosion resistance due to hard anodizing on inside & outside and polyester coating on external surface.
- Easy mounting base standard to ISO 5211 (F03/F05/F07)
- Handwheel for manual operation.
- Standard 4 limit switches
- Long Life- Cycle.
T-REA 2000 To 3000 Series On/Off Rotary Electric Actuators
Product Specifications:
| Material | Steel,Aluminium Alloy,AL-bronze,Polycarbonate. |
| Ambient Humidity | 90%RH (non-condensing) |
| Ambient Temperature | -20 to 70 Deg C |
| Cable Connection | Three PF3/4″ tap |
| Open and Close Time | 31-37 seconds |
| Flange Connection | ISO 5211 standard (F03/F05/F07) |
| Mechanical Stopper | 2 x external adjustable screws |
| Indicator | Continuous position indicator |
| Torque Output | 2000 Nm & 3000 Nm |
| Enclosure | IP67 |
| Travel Angle | 0-110 Degree |
| Power Supply | 220 V AC,Single Phase |
| Torque Switch | Open / close,SPDT,250 V AC |
T-REA 80 To 1200 Series On/Off Rotary Electric Actuators
Product Specifications:
| Brand | Tork |
| Mechanical Stopper | 2 x external adjustable screws |
| Indicator | 10 A rating (except HQ-008 continuous position indicator) |
| Ambient Humidity | %90 RH Max. (non-condensing) |
| Ambient Temperature | -20 to 70 Deg C |
| Open and Close Time | 13-37 seconds |
| Cable Connection | Three PF3/4″ Tap (Standart Type Only) |
| Torque Switch | Open / close,SPDT,250 V AC |
| Limit Switches | 2 x open / close,SPDT,250 V AC,10A rating (on request additional +2 switches) |
| Torque Output | 80-1200 NM |
| Materials | Steel,Aluminium Alloy,AL-Bronze,Polycarbonate |
| Enclosure | IP67 |
| Travel Angle | 0-110 Degree |
| Power Supply | 220 V AC,Single Phase |
| Motor | Induction Motor,reversible |
Tork-S9190 Mini Electric Actuated
Product Specifications:
| Model Name/Number | S9190 |
| Brand | Tork |
| Max Pressure | 10 Bar |
| Temperature Range | 0-100 Deg C |
| Ambient Temperature | -20 Deg C |
| Humidity | <95% |
| Enclosure | IP67 |
| Operating Time | 5-7 Seconds |
| Working Current | 15+/-10 mA (DC12V) |
| Max Power | 4-5 W |
| Max Torque | 2 NM |
| Power Supply Range | 220 V AC |
Product Description :
Features:
- Mini dimension suits for small equipment
- Patented technology floating seal structure
- Long service life 170000-100000 circles
- Low working current, suitable for battery driving
- Manual override is safe and convenient
- IP67 Enclosure
- Housing matarial: ABS (PA-777D)
- On off control
- On request: 11/4″, 11/2″ and 2″ connection
- On request 5V AC and DC
- Can be operated at zero pressure
Applications:
- HVAC
- Water treatment
- Chemical process
- Small equipment for automatic control
- Replacing solenoid valve, particularly when solenoid cannot work reliably
- For viscous and particular fluids where the solenoid valves are inacceptable
- Heating, cooling, ventilation systems
- Automation systems when small-sized valve demanded
