Piston Valves

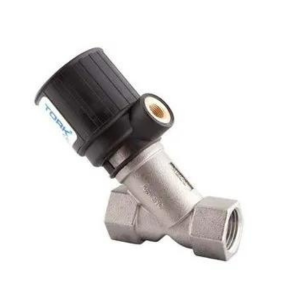

Tork PP1090 PVC Pneumatic Actuated Angle Seat Valve
Product Specifications:
| Brand | Tork |
| Viscosity of the Fluid | Max. 600 mm2/s |
| Max Operating Pressure in Vacuum | -700 mbar (For inlet and outlet pressure) |
| Material of Actuator | Fibre-glass reinforced polyamide (PAGF30) |
| Body | All Bodies 304 SS |
| Positioner and Switch Box can be mounted | Yes |
| Switching Time | 30-40 ms |
| Max Operating Pressure | 16 bar |
| Type | Pneumatic Actuated Angle Seat Valve |
| Connection | Screwed G (BSP) |
| Model | PP1090 |
| Function | Normally Closed,Normally Open |
| Working Temperature | 10 – +180 deg C |
Product Description
Application:
- Water
- air
- steam
- Gas
- natural gas
- Chemicals
- Petroleum products
- Food
- Pharmaceutical products
- Sterilization
- Water treatment
- Dyeing
- Cleaning plants

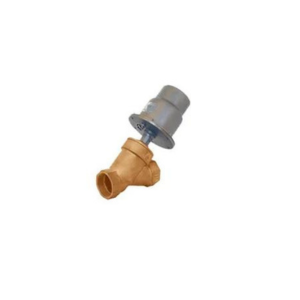

Tork Sealing Material-PTFE PP1030 Mini Pneumatic Actuated Angle Seat Valve
Product Specifications:
| Brand | Tork |
| Material | Body-Brass, Sealing Material- PTFE, On Request-NPT screwed connection |
| Recommended Control Air Supply | 4-10 bar |
| Way | 2/2 way |
| Max Operating Pressure | 16 bar |
| Air Supply Connection | 1/4″ G |
| Function | Normally Closed |
| Model No | PP1030 |
| Type | Pneumatic Actuated Angle Seat, Piston Valve |
| Connection | Screwed G (BSP) |
| Working Temperature | -10-+180 deg C |
Product Description :
In mini piston valve, a new developed impermeability and bedding materials are used. This new development provides longer product lifetime without any trouble.
It is opened and closed 1.000.000 times without any trouble at its life test. It is also take into account that this product’s flow way is the opposite compared to other piston valves.
Operation Areas:
- Water and Water Steam
- Air
- Petroleum Products
- Food
- Medicine
- Hydrolic Oil
- Acid
- Painting Machines
- Alcohol
Advantages According to the Other Valves:
- Economic
- Light and useful
- Consumes low air

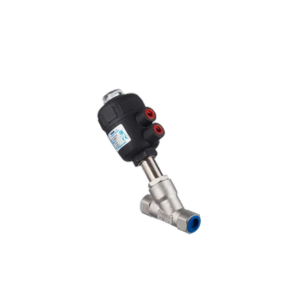

Tork PP 1095 Series Pneumatic Angle Seat Valve
Product Specifications:
| Brand | Tork |
| Material | Body-Brass, Sealing Material- PTFE, On Request-NPT screwed connection |
| Recommended Control Air Supply | 4-6 bar |
| Way | 2/2 way |
| Max Operating Pressure | 16 bar |
| Air Supply Connection | 1/4″ G |
| Function | Normally Closed |
| Type | Pneumatic Actuated Angle Seat, Piston Valve |
| Connection | Screwed G (BSP) 2 1/2″-3″ |
| Working Temperature | -10- +180 deg C |
