Vacuum Products

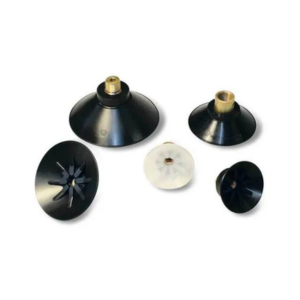

Vuototecnica Silicon Industrial Vacuum Cup
Product Specifications:
| Brand | Vuototecnica |
| Material | Silicon |
| Usage/Application | Industrial |
| Hardness | 40 to 60 Shore A |
| Pressure | 8-10 PSI |
| Weight | 38.5-70 g |
Silicon Bellow Vacuum Cup
Product Specifications:
| Material | Silicon |
| Application | Medical Devices |
| Color | Black, White and Red |
| Hardness | 30-70 Shore A |
| Tolerance | +/-0.05 mm |

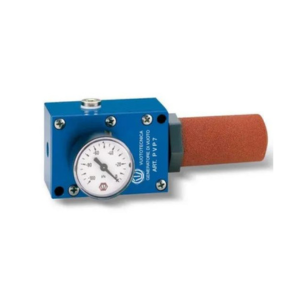

PVP 7X Single Stage Vacuum Generator
Product Specifications:
| Brand | Vuototecnica |
| Max Vacuum Level | 60, 73, 85 -kpa |
| Air Consumption | 2.3, 2.8, 3.2 nl/s |
| Working Temperature | -20 / +80 deg C |
| Weight | 470 g |
| Model No | PVP 7 X |
| Number of Stages | Single |
| Noise Level | 63 db(a |
Product Description:
Vacuum generators PVP 7 X also exploit the Venturi principle. Their distinctive feature compared to PVP 2 and PVP 3 is their greater suction capacity, thanks to the association of two ejectors in parallel. A special silencer made with sintered ceramic is installed on their exhaust, making them particularly silent. As a standard, they are equipped with a vacuum gauge for a direct reading of the vacuum level. An additional connection on the body of the generator allows the installation of a mini vacuum switch for signalling the vacuum level, or of a pneumatic solenoid valve for a quick restoration of the atmospheric pressure at the service. They are fully made with anodised aluminium, with stainless steel ejectors. These vacuum generators can be used for connecting one or more vacuum cups or equipment with capacity requirements within the shown values.
Vacuum Suction Filters
Product Specifications:
| Efficiency | 99.99% |
| Size | 1.25 Inch |
| Flow Rate | 15|/ min |
| Pressure | 45-50 MPa |
| Capacity | 850-1500 m3/h |
| Filter Medium Material | Stainless Steel |
Product Description:
Vuototecnica, Italy Make Vacuum Suction Filters.

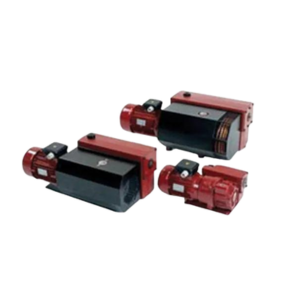

Oil-Bath Vacuum Pumps
Product Specifications:
| Voltage | 220-240 V |
| Cooling System | Air-cooled |
| Motor Power | 0.37 kW |
| Rotating Speed | 1400 r/min |
| Ambient Temperature | 5 to 40 Deg C |
| Outlet Connection | 25 NW |
| Inlet Connection | 40NW |
Vacuum Switches
Product Specifications:
| Electrical Connection | DIN Plugs |
| Compound Pressure | -100~100 kPa |
| Rated Current | 630 A |
| Max Working Pressure | 7500 MPa |
| Rated Voltage | 12 KV |
Product Description:
Vacuum switches are electrical switches designed to operate within a vacuum environment. These switches are used in vacuum systems or applications where a vacuum is present to control or interrupt the electrical circuit based on specific conditions or parameters.
