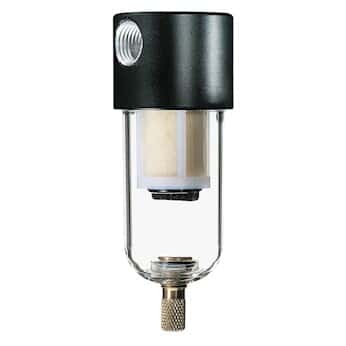

Compressed Air Line Filter
Product Details:
Air Line Filters also known as Air Compressor Line Filters and Compressed Air Filter are used to control liquid and solid moisture content from air.
We provide high quality Compressed Air Filter product which is used to remove contaminants like Moisture, Oil from the output air. This thorough scope of high productivity mixing channels will eliminate Oil, Earth, Smell and water from the compacted air supply, consequently offering complete protection to all equipment installed downstream.
Color: Light Blue
Maxi. Pressure : 16 bar
Operate Temperature: 1.5~80℃
Material: Grade A
Aluminum Alloy Filter element
Grade: PF/AO/AF/AE/FF/AT/AAT
Corrosion Treatment: Inside and outsize the housing
100% air tightness test
Housing serve life: 15 years
Element server life: 6000~8000 hours
Filtration Efficiency: 99.99%
Model: VKB Series
Brand: Flotronics
Product Description:
Recommended for General automation equipment, Pneumatic tools, print, laser cutting industries.
Description:
| F | AO | AF | AE | FF | AT | AAT |
| As a primary filter, particles whose diameter more than 5?m can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1?m can be removed, the residual content of oil mist does not exceed 0.6mg/m³(21???1ppm(w). | High efficiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01?m can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21?),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01?m can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21?),0.001ppm(w) | Dust particles whose diameter more than 0.01?m, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21?)?0.003ppm?w? | Dust particles whose diameter more than 1?m can be removed | Dust particles whose diameter more than 0.01?m can be removed |
VKB Feature:
Color: Light Blue
Element Material: HV fiber glass
Aluminium alloy die-casting filter housing
Stainless steel filtering material support
Different Point from YFB: Bottom without AB set Designed
Flow rate: 1.0-48m³/min
Maxi. operating pressure: 16 bar(g)
Maxi. operating temperature: 80*C
Technical Specification:
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g)
For application in other working pressure, please refer to the correction factors.
| MODEL | PIPE SIZE | FLOW RATES | QTY | DIMENSION | ||||
| L/S | M3/min | SCFM | W | D | H | |||
| VKB010 | RC1/2″ | 16.7 | 1 | 35.5 | 1 | 96 | 79 | 252 |
| VKB020 | RC3/4″ | 25 | 1.5 | 53 | 1 | 96 | 79 | 252 |
| VKB030 | RC3/4″ | 30 | 1.8 | 63.6 | 1 | 96 | 79 | 286 |
| VKB040 | RC1″ | 33.3 | 2 | 71 | 1 | 96 | 79 | 286 |
| VKB060 | RC1″ | 60 | 3.6 | 127 | 1 | 138 | 111 | 357 |
| VKB070 | RC1″ | 83.3 | 5 | 177 | 1 | 138 | 111 | 458 |
| VKB080 | RC1-1/2″ | 125 | 7.5 | 265 | 1 | 138 | 111 | 458 |
| VKB090 | RC2″ | 166.7 | 10 | 353.1 | 1 | 174 | 142 | 558 |
| VKB100 | RC2-1/2″ | 216.7 | 13 | 459 | 1 | 174 | 142 | 558 |
| VKB110 | RC2″ | 283.3 | 17 | 600 | 1 | 174 | 142 | 838 |
| VKB120 | RC2-1/2″ | 316.7 | 19 | 671 | 1 | 174 | 142 | 838 |
| VKB130 | RC3″ | 416.7 | 25 | 883 | 1 | 220 | 184 | 645 |
| VKB140 | RC4″ | 466.7 | 28 | 989 | 1 | 220 | 184 | 645 |
| VKB150 | RC3″ | 683.3 | 41 | 1448 | 1 | 220 | 184 | 902 |
| VKB160 | RC4″ | 800 | 48 | 1695 | 1 | 220 | 184 | 902 |
| Technical Equipments | Maxi.operating pressure: 16 bar | |||||||
| Maxi. operating temperature: 80*C | ||||||||
| Mini. operating temperature:1.5*C | ||||||||
CONNECTION FACTOR:
| Pressure | Bar | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psi | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 |
Package:
Net Weight: 1.04KG
Inner Box Size: 31.5*13.0*13.5cm
