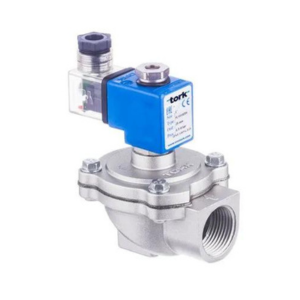

P10 Pulse Solenoid Valves
Product Specifications:
| Material | Body-Die cast Aluminium, Diaphragm-Neoprene |
| Series | P10 Series |
| Coil Voltage | 220 / 230V, 110V, 48V, 24 V, 12 VAC – 110 V, 48 V, 24 V, 12 VDC |
| Pressure | 0,5 bar to 8 bar |
| Seals | Neoprene |
| Connection | 3/4″ to .3″ / BSP, NPT / Screwed, Flanged |
| Application | Dust Bag Filters, Bunkers, Cement Factories, Electrostatic Painting Cabins etc. |
| Protection Class | IP 65 and Exproof Series ( E Ex.md.II.T4/T5..) |
| Operating Temperature | 0 – 80 deg C |
| Type | 2/2 Way |
| Continuous Duty | ED %100 |
| Coil Insulation Class | H (180 deg C) |
Product Description:
Features:
- TORK series P10 pulse valves are 2/2 way normally closed.
- Suitable for air G 3/4″ and G 1″ connection
- The pulse valves are especially designed for dust collector service application or similar systems
- Compact design, high reliability, flow rate, quality and performance, long life.
- Extremely fast opening and closing
- Working Temperature:-10??C / +80??C Minimum operating differential pressure 0,5 bar
- On request; with electronic timer
- TORK pulse valves satisfy relevant 97/23/EC, Pressure Equipment Directive (PED) and 2006/95/EEC Low
- Voltage Directive (LVD).
- Some application; dust filters, bunkers, dust extractors, electrostatic painting cabinets
- Coils interchangeable
- Flow factor Kv of each valve is indicated, so that the flow Q can be calculated as a function of pressure
- Pulse valves must be used with filtered fluids.
- Pulse valve can be mounted in any position without affecting operation; vertical with coil upwards preferred.
- Standard pipe connection is G (BSP) (ISO 228-1) and on request; other pipe connections are available (NPT (ANSI 1.20.3))
