Description

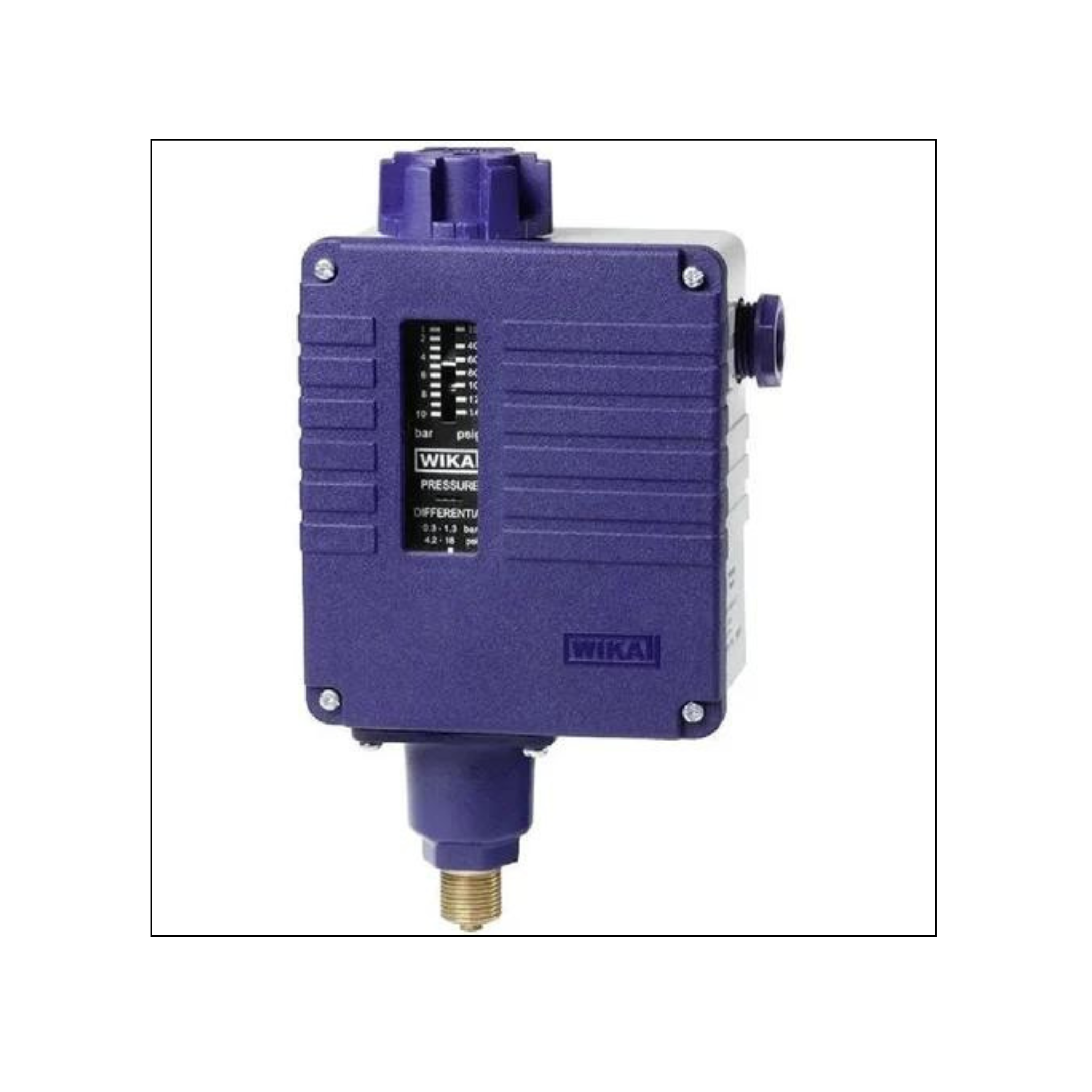

1. Switch Type : Pressure
2. Sensor Type : NBR Diaphragm
3. Wetted Parts : Galvanised Steel
4. Enclosure : WeatherProof to IP:65
5. On/Off Differential : Adjustable (0.1 Bar + 5 to 20% of switch point)
6. Range : 0.2 to 2 Bar
7. Maximum Working Pressure : 60 Bar
8. Process Connection : 1/4″” BSP (M)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : 4A 250 V AC
11. Electrical Entry : DIN Angular Connector
12. Maximum Fluid Temperature : 80 Deg C
