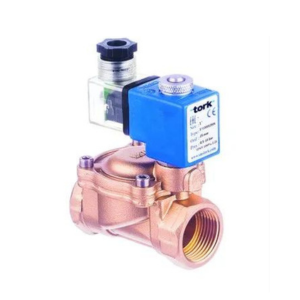

S1030 (TORK-GL) Series General Purpose Solenoid Valve
Product Specifications:
| Brand | Tork |
| Valve Size | G3/8″,G1/2″,G3/4″,G1″,G11/4″,G11/2″,G2″ |
| Material | Tube and international part-SS, Body-Brass, steel casting or plastic, Seal-NBR, on request EPDM |
| Pressure | 0,35 bar – 12 bar / 1,5 – 16 bar |
| Series | S1030 (TORK-GL) |
| Application | Air,Water,Gas |
| Coil Voltage | 110 V, 48 V, 230 V, 12 V DC, 12 V AC, 24 V |
| Protection Class | IP65 and Exproof models |
| Max Viscosity | 5 deg E (~37cST or mm2/s) |
| Position | Normally Closed |
| Temperature | -10 deg C-80 deg C |
| Continuous Duty | ED %100 |
| Coil Insulation Class | H (180 deg C)(IEC 85) |
| Coil Impregnation | Polyester Fiber Glass |
Product Description:
A S1030 (TORK-GL) Series General Purpose Solenoid Valve is an electromechanically operated valve. The valve is controlled by an electric current through asolenoid, in the case of a two-port valve the flow is switched on or off; in the case of a three-port valve, the outflow is switched between the two outlet ports.
