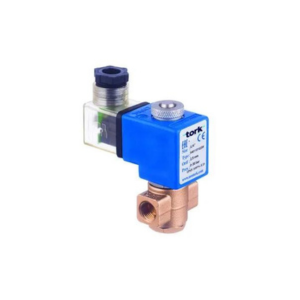

S4011 Series ( Tork-Yna) S40 Light Oil Solenoid Valves
Product Specifications:
| Brand | Tork |
| Material | Tube and internal parts-Stainless Steel, Body-Brass, Seal-VITON, RUBY |
| Pressure | 0 bar-30 bar,(1/8″,1/4″30 bar) |
| Media | Fuel |
| Series | S4011 Series ( TORK-YNA) |
| Application | Fuel oil,Diesel oil,Hydraulic oil,Petrol Oil,etc |
| Size | 1/8″-2″ BSP (on request NPT) |
| Coil Voltage | 110 V, 110 V. 48 V, 12 V DC, 48 V, 24 V, 12 V AC, 230 V |
| Control | Direct-Operated, Pilot Operated |
| Frequency | 50 Hz (60 Hz) |
| Voltages Tolerance | AC -15%,+10% DC -5%,+10% |
| Temperature | -10 deg C-160 deg C |
| Max Viscosity | 5 deg E (~37cST veya mm2 /s) |
| Position | Normally Open |
| Protection Class | IP65 (ISO 60529) On request; IP68 |
Product Description:
Specifications:
Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | |||
| Min | Max | Min | Max | |||||||
| S4011.00.025 | 1/8″ | 2,5 | 0 | 30 | 3,2 | -10 | 160 | RUBY | 0,38 | |
| S4011.00.032 | 1/8″ | 3,2 | 0 | 20 | 5 | -10 | 160 | RUBY | 0,38 | |
| S4011.01.025 | 1/4″ | 2,5 | 0 | 30 | 3,2 | -10 | 160 | RUBY | 0,37 | |
| S4011.01.032 | 1/4″ | 3,5 | 0 | 20 | 5 | -10 | 160 | RUBY | 0,37 | |
| S4011.02 | 3/8″ | 12,5 | 0,5 | 12 | 48 | -10 | 160 | VITON | 0,69 | |
| S4011.03 | 1/2″ | 14,5 | 0,5 | 12 | 70 | -10 | 160 | VITON | 0,72 | |
| S4011.04 | 3/4″ | 17 | 0,5 | 12 | 85 | -10 | 160 | VITON | 0,81 | |
| S4011.05 | 1″ | 17 | 0,5 | 12 | 90 | -10 | 160 | VITON | 0,98 | |
| S4011.06 | 1 1/4″ | 46 | 0,5 | 10 | 390 | -10 | 160 | VITON | 2,66 | |
| S4011.07 | 1 1/2″ | 46 | 0,5 | 10 | 460 | -10 | 160 | VITON | 2,56 | |
| S4011.08 | 2″ | 46 | 0,5 | 10 | 580 | -10 | 160 | VITON | 2,99 | |
