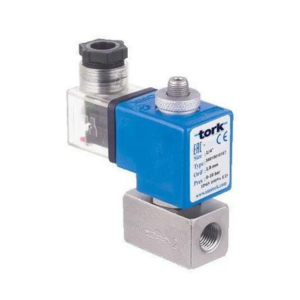

Tork 0 Bar - 14 Bar Stainless Steel 2 2 Way Solenoid Valves, Size: 1/8"-1/4" Bsp (On Request Npt)
Product Specifications:
| Pressure | 0 bar – 14 bar |
| Series | S6015 Series ( G1/8″, G1/4″ ) |
| Application | Acid, Air, Water, Hot and Oily air |
| Material | Tube and internal part-Stainless Steel, Body-Stainless Steel (AISI 316 SS), Seal-PTFE |
| Size | 1/8″-1/4″ BSP (on request NPT) |
| Brand | Tork |
| Coil Voltage | 12 V DC, 110 V, 230 V, 48 V, 12 V AC, 24 V |
| Coil Insulation Class | H (180 deg C)(IEC 85) |
| Continuous Duty | ED %100 |
| Coil Impregnation | Polyester Fiber Glass |
| Temperature | -10 deg C-160 deg C |
| Type | 3 way |
| Position | Normally Closed |
| Protection Class | IP65 and Exproof models |
Product Description:
Features:
- Wide pressure range, flow rate and orifis options.
- Solenoid valfs are used with filters.
- Solenoid valves can be mounted in any position without affecting its operation, coil to be used in a vertical position.
- It is applicable for natural gas, lpg, methan, butane, propane, gas, noncorrosive gas. These are applicable for valve usage
- Operating Temperature: -10 oC / +160 oC
- No pressure difference is required.
Specifications:
|
Valve Type / Order No
|
Connection Size
|
Orifice Size (mm)
|
Pressure (bar) |
KV lt/ min
|
Fluid Temperature°C |
Seal
|
Weight (kg)
|
||||
| Min | Max | Min | Max | ||||||||
| – | – | – | – | Liquid | Air | – | – | – | – | – | |
| S6015.00.025 | 1/8″ | 2,5 | 0 | 1 | 10 | 1-2=2,7, 2-3=2,7 | -10 | 160 | VITON | 0,44 | |
| S6015.00.018 | 1/8″ | 1,8 | 0 | 2 | 14 | 1-2=1,35, 2-3=2,7 | -10 | 160 | VITON | 0,44 | |
| S6015.01.025 | 1/4″ | 2,5 | 0 | 1 | 10 | 1-2=2,7, 2-3=2,7 | -10 | 160 | VITON | 0,43 | |
| S6015.01.018 | 1/4″ | 1,8 | 0 | 2 | 14 | 1-2=1,35, 2-3=2,7 | -10 | 160 | VITON | 0,43 | |
