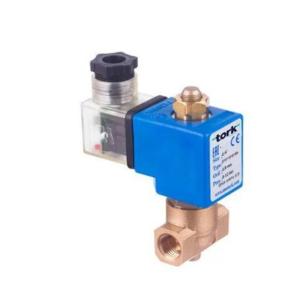

Tork S1011 Series Direct Acting Solenoid Valve
Product Specifications :
| Pressure | 0-12 bar |
| Series | S1011 Serie |
| Brand | Tork |
| Size | 1/4” |
| Frequency | 50 Hz (60 Hz) |
| Connector Specification | ISO 4400 / EN 175301-803 Form A,Spade Plug (Cable dia. 6-8 mm) |
| Electric Plug Connection | DIN 46340 3-Poles Connector (DIN 43650) |
| Voltages Tolerance | AC -15%,+10% DC -5%,+10% |
| Ambient Temperature | -10 deg C,+60 deg C |
| Electrical Safety | IEC 335 |
| Continuous Duty | ED %100 |
| Type | S101101018N |
| Orif | 1.8 mm |
| Protection Degree | IP65 (ISO 60529) On request; IP68 |
| Coil Insulation Class | H (180 deg C)(IEC 85) |
| Coil Impregnation | Polyester Fiber Glass |
Product Description :
Features:
- Wide pressure range, flow rate and orifis options.
- Solenoid valves are used with filters.
- Solenoid valves can be mounted in any position without affecting its operation.
- Coil to be used in a vertical position
Materials in Contact with Fluid:
- Body: Brass
- Internal Parts: Stainless Steel, Brass
- Sealing: NBR(On request; EPDM, VITON)
- Shading Ring: Copper (EN 12735-1)
- Seats, Core Tube, Springs: Stainless Steel, Brass
