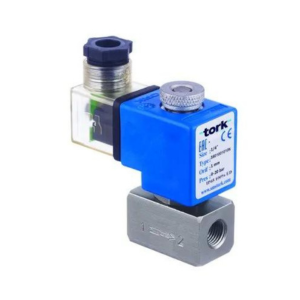

Tork S6010 Direct Acting Stainless Steel Solenoid Valve, Size: 1/4''

Product Specifications:

Brand	Tork
Series	S6010
Size	1/4”
Frequency	50 Hz,other frequencies on request; (60 Hz)
Connector Specification	ISO 4400 / EN 175301-803,From A,Spade plug (Cable Dia.6-8mm)
Electric Plug Connection	DIN 46340 3-poles connectors (DIN 43650)
Electrical Safety	IEC 335
Standard Voltages	For AC 12V,48V,For DC 12V,110V,24V
Protection Degree	IP 65 (EN60529) with coil duly fitted with the plug connector
Coil Encapsulation Material	Fiber Glass Reinforce
Continuous Duty	ED % 100
Coil Insulation Class	H (180 deg C)
Coil Impregnation	Polyester Fiber Glass
Ambient Temperature	From -10 deg C +60 deg C

Product Description:
Features:

Large orifice option
Tork series S6010(NC) direct acting
solenoid valves are 2/2 way normally
Suitable for fuel and oils
Working temperature -10°C / +160°C
Easy and quick installation
High reality, quality and
performance; long life, corrosion resistance
Wide pressure ratings, range of flow rate orifice options
Ideal for the automatic control of media in a wide range of applications.
TORK solenoid valves satisfy relevant 97/23/EC, Pressure Equipment Directive (PED) and 2006/95/ECC Low Voltage Directive (LVD)
Coils interchangeable
How factor Kv of each valve is indicated, so that the flow Q can be calculated as a function of pressure
Solenoid valves must be used with filtered fluids.
Solenoids valve can be mounted in any position without affecting operation; vertical with coil upwards preferred
Standard pipe connection is G (BSP) (ISO 228-1) and on request; other pipe connections are available (NPT (ANSI 1.20.3))

Materials In Contact With Fluid
