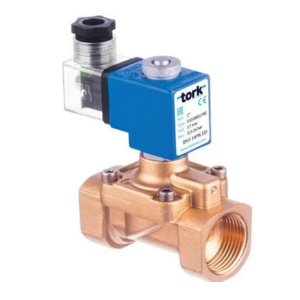

Tork S8010 Natural Gas Solenoid Valves

Product Specifications:

Brand Tork
Electrical Safety IEC 335
Connector Specification ISO 4400 / EN 175301-803 Form A, Spade Plug (Cable dea.6-8 mm)
Standard Voltages 24V, 11 D V, 230VFor DC 12V, 48V, For AC 12V, 11 DV
Voltages Tolerance AC -15%, +10% DC -5%, +10%
Frequence 50 Hz (60 Hz)
Electric Plug Connection DIN 46340 3- Poles Connector(DIN43650)
Protection Degree IP65 (ISO 60529) On request;IP68
Working Temperature -10 deg C / +80 deg C
Continuous Duty ED %100
Coil Insulation Class H (180 deg C)
Coil Impregnation Polyester Fiber Glass
Series S8010 Series (G3/8″, G1/2″, G3/4″,G1″, G11/4″,G11/2″, G2)

Product Description :

Features:

  • TORK series S8010 diaphragm gas solenoid valves are 2/2 way normally closed and pilot operated
  • Suitable for natural gas, LPG, methane, propane, butane, city gas, air, non-corrosive gases (number 3 gas group) that are compatible with the construction materials used in the valves.
  • Minimum operating differential pressure 1 bar
  • High reliability, quality and performance; long life, corrosion resistance
  • TORK solenoid valves satisfy relevant 97 /23/EC, Pressure Equipment
  • Directive (PED) and 2006/95/EEC Low Voltage Directive (LVD).
  • Coils interchangeable
  • Solenoid valves must be used with filtered fluids.
  • Solenoid valve can be mounted in any position without affecting operation, vertical with coil upwards preferred.

Valve Type / Order No
Connection Size
Orifice Size (mm)
 Pressure (bar)
KV lt/ min
 Fluid Temperature°C
Seal
Weight (kg)
Min Max Min Max
– – – – Liquid Air – – – – –
S6015.00.025 1/8″ 2,5 0 1 10 1-2=2,7, 2-3=2,7 -10 160 VITON 0,44
S6015.00.018 1/8″ 1,8 0 2 14 1-2=1,35, 2-3=2,7 -10 160 VITON 0,44
S6015.01.025 1/4″ 2,5 0 1 10 1-2=2,7, 2-3=2,7 -10 160 VITON 0,43
S6015.01.018 1/4″ 1,8 0 2 14 1-2=1,35, 2-3=2,7 -10 160 VITON 0,43
