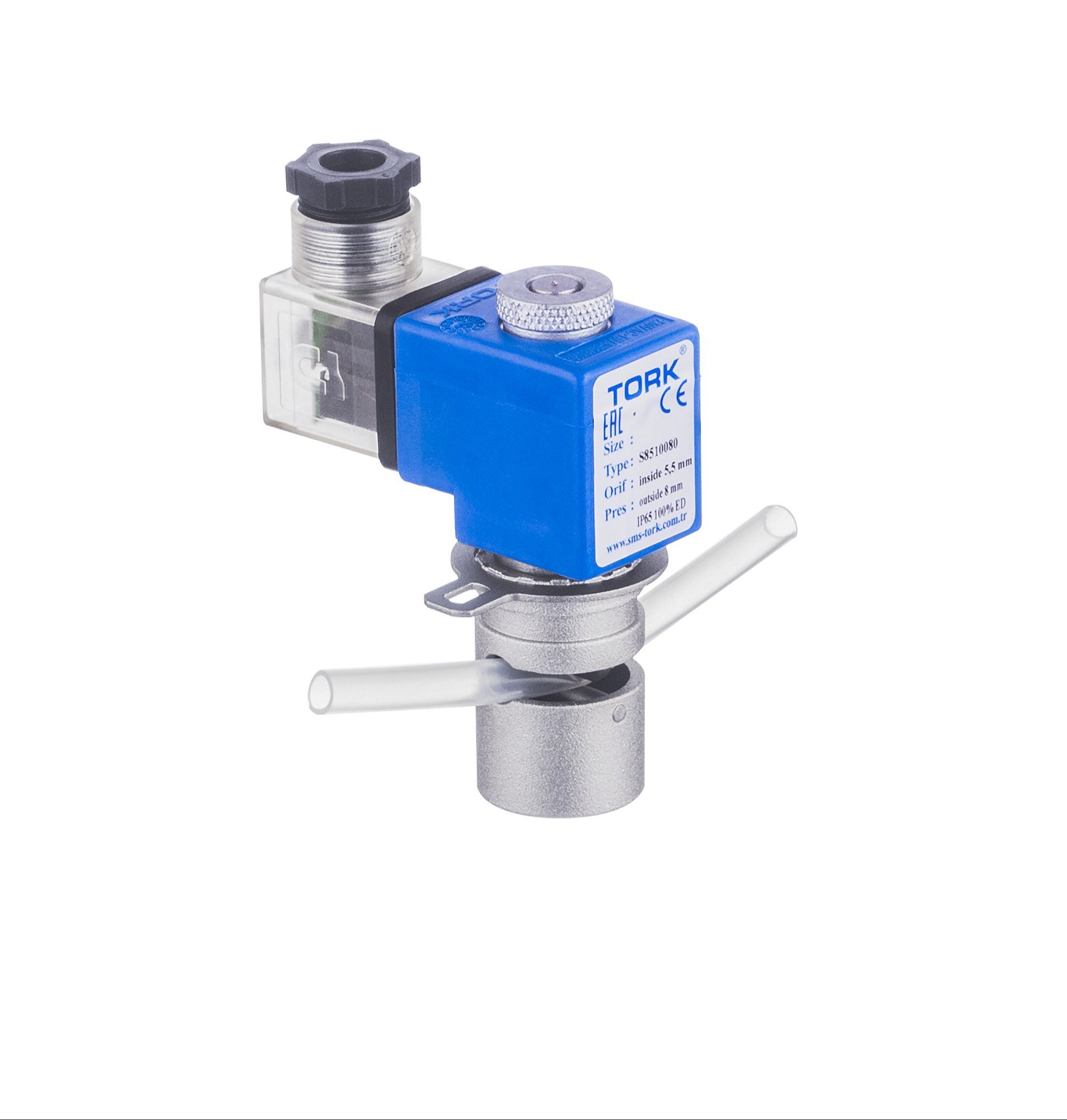

TORK Series S8510 (NC) And S8511 (NO) Pinch Solenoid Valves
Product Specifications:
| Brand | Tork |
| Series | S8510 / S8511 Series |
| Coil Voltage | AC 12V, 24V, 48V, 110V, 230V |
| Frequency | 50 Hz |
| Pinch Device | POM |
| Core Tube | SS |
| Coil Insulation Class | H (180 Deg C) |
| Continuous Duty | ED %100 |
| Protection Class | IP65 |
| Temperature | -10 to 60 Deg C |
| Application | Air,Water,Acid,Oil,Hygenic Liquids,Corrosive Mediums |
| Connection Size | 6,7,8,9 mm Soft Rubber Pipe |
| Tube and Internal Parts | Stainless Steel |
| Body Material | Anodized Aluminum |
| Position | Normally Closed |
Product Description:
General Features:
- TORK series S8510 (NC) and S8511 (NO) pinch solenoid valves are 2/2 way normally closed and normally open
- The tubing is the only material in contact with the fluid
- Fluid not in contact with metal parts
- Suitable for media without producing neither turbulent flows nor dead spaces.Liquids, water, agressive media etc.
- High flow rate under the same conditions of internal diameter of different solenoid valves
- Valves are suitable for soft silicone tubings or others similar as to elasticity and hardness (50 Shore A )
- Tubing are not included in our supply
- Compact and low weight valve enabling easy and quick installation
- High reliability, quality and performance
- Solenoid valves must be used with filtered fluids.
- Solenoid valve can be mounted in any position without affecting operation vertical with coil upwards preferred.
- If the soft tubings are different from the ones indicated, it’s important that the tubing maximum wall thickness is the same as shown in the table
| SPECIFICATION | ||||||
| Type / Code No | Inside Diameter | Outside Diameter | Tubing Max. Wall Thinkness mm | Pinch Strenght | Coil Power (W) | Weight kg |
| S8510.090 | 6, 5 | 9″ | 1, 5 | 1, 3 | 18 | 0, 31 |
| S8510.080 | 5, 5 | 8 | 1, 5 | 1, 15 | 18 | 0, 31 |
| S8510.070 | 4, 5 | 7 | 1, 5 | 1 | 18 | 0, 31 |
| S8510.060 | 3, 5 | 6 | 1, 5 | 0, 84 | 18 | 0, 31 |
