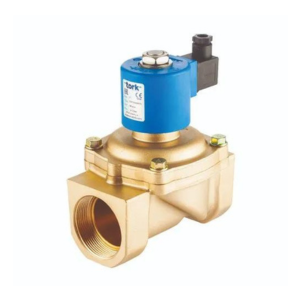

Tork Up To 16 Bar S1000 Servo Assisted Series Solenoid Valve
Product Specifications:
| Brand | Tork |
| Size | 3/8″ to 2″ |
| Pressure | Up to 16 Bar |
| Media | Air, Water, Gas |
| Series | S1000 SERIES |
| Coil Voltage | 12 V, 24 V, 48 V, 110 V, 230 V |
| Seals | NBR,on Request EPDM,VITON |
| Position | Normally closed |
| Protection Class | IP65,IP68 (Coil under water application 72 hours up to 10 meter) and Exproof Models |
| Body Material | Brass |
| Tube Material | SS |
| Temperature Range | -10 to 60 Deg C |
Product Description:
General Features:
- Wide pressure range, flow rate and orifis options.
- Solenoid valves are used with filters.
Solenoid valves can be mounted in any position without affecting its operation, coil to be used in a vertical position - No pressure difference is required.
TORK S1000 Series selenoid valves working without Pressure difference, ∇P=0 Bar, are also named as Zero Series Solenoid Valves.
Application Areas:
In the cases when the system is closed and the inlet and outlet pressures have no difference.
It should be paid attantion that the Inlet and Outlet pressure difference is minimum zero bar and maximum 16 bar.
For example:
Think of a line with below pressure values;
P1 Inlet Pressure = 2 Bar,
P2 Outlet Pressure = 2 Bar
Pressure difference P1-P2 = 0 Bar. S1000 Series Solenoid valves are fitting this case.
