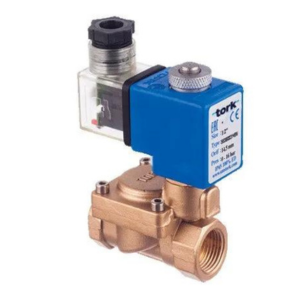

Tork Water S8330 Series Solenoid Valves

Product Specifications:

Media	Water
Material	Brass/Bronze
Brand	Tork
Application	Air, Water, Gas etc
Pressure	0 bar – 100 Bar
Coil Voltage	12 V, 24 V, 110 V, DC Latching
Voltages Tolerance	DC -5%, +10%
Coil Encapsulation Material	Fiber Glass Reinforced
Response Time	Opening Time-400 – 1600 ms, Closing Time-1000 – 2000 ms
Model Number	S8330 Series
Coil Impregnation	Polyester Fiber Glass
Max Viscosity	5 deg E (~37cST veya mm2 /s)
Continuous Duty	ED %100
Connection Size	3/8″ – 1″
Temperature	-10 deg C-80 deg C
Position	Normally closed
Protection Class	IP65
Coil Insulation Class	H (180 deg C)

Product Description:

Features:

No continious energy required.
Suitable for non-aggressive liquids (water, light oil (2E) etc)gaseous fluids (air, inert gases etc)
Working temperature: -10°C / + 80°C
Not suitable for use with dangerous fluids listed in Group 1
High reliability, quality and performance; long life, corrosion resistance
Wide pressure ratings, range of flow rate and orifice options
Ideal for the automatic control of media in a wide range of applications.
Coils interchangeable
Solenoid valves must be used with filtered fluids.
Solenoid valve can be mounted in any position without affecting operation, vertical with coil upwards preferred.
The coils’ on and off position is provided by changing the cables’ +/- ends over the coil. Battery or a proper voltage source is used for feeding. The valve’s position is changed by giving an instantaneous energy. The coil is not under a constant energy.
